By 8Sinn

8Sinn Arca Swiss Baseplate Kit V2

$234.00 USD
Free shipping for orders $100 above (USA)
8Sinn products ship in 7-10 Days
Use code: BF25 and get 25% off all 8Sinn

KEY FEATURES

Key features:

  • Safety locks on both sides
  • Compatible with DJI R Quick-Release Plate (Upper)
  • Quick-release system
  • 2 x 32mm Arri Rosettes
  • 15mm rod compatible
  • Dovetail guide rails (bottom of baseplate)
  • 6 x 1/4" mounting points
  • Aluminum made
Overview

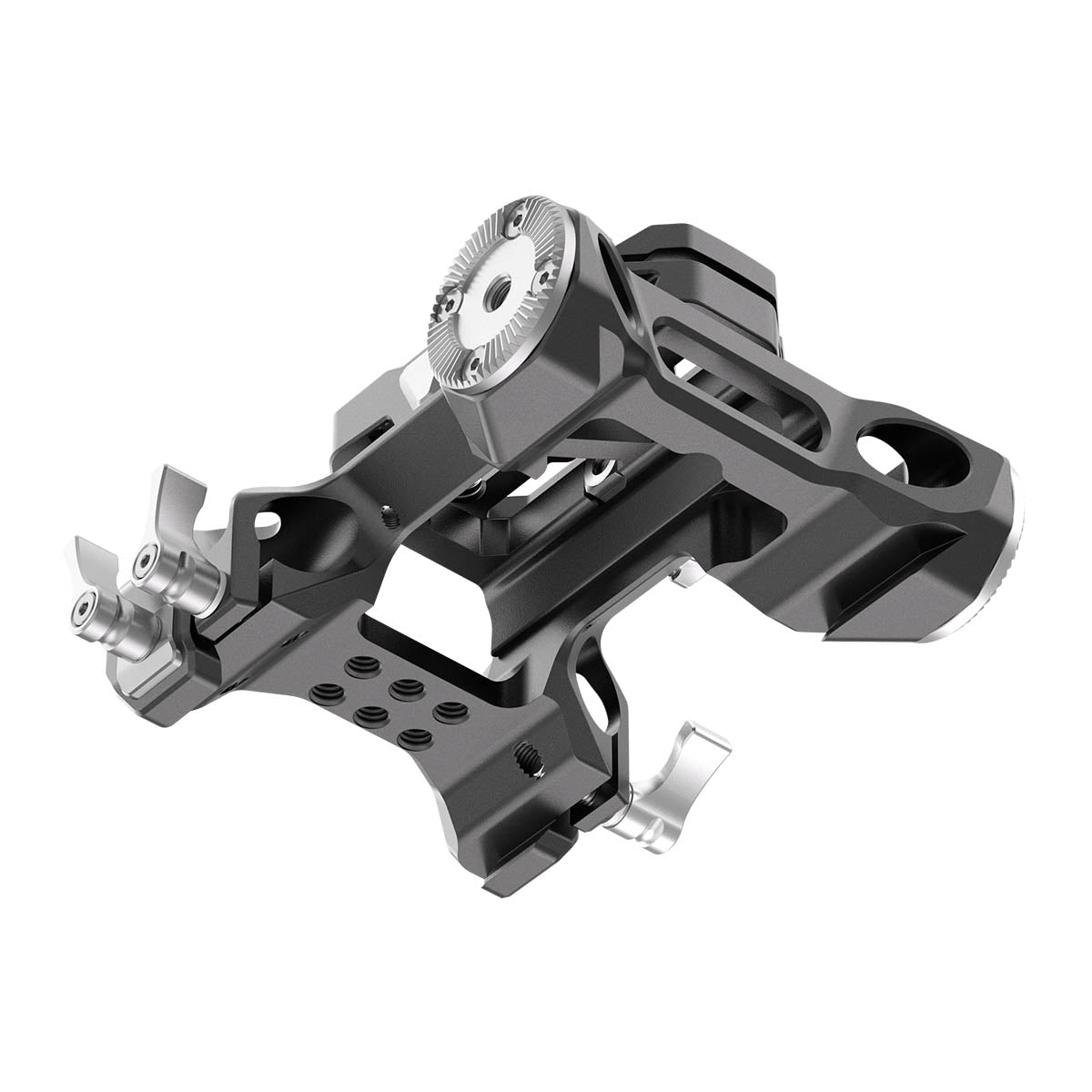

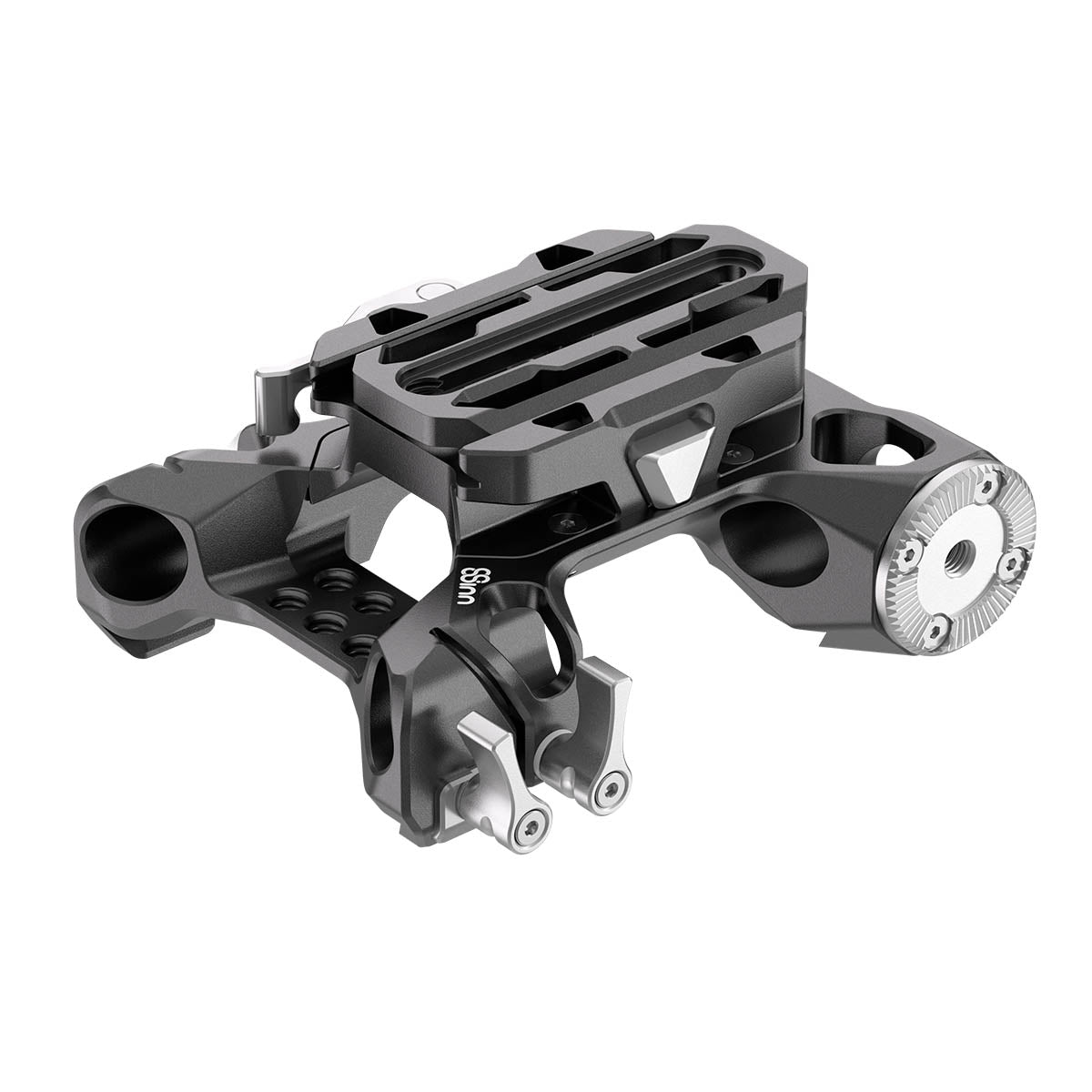

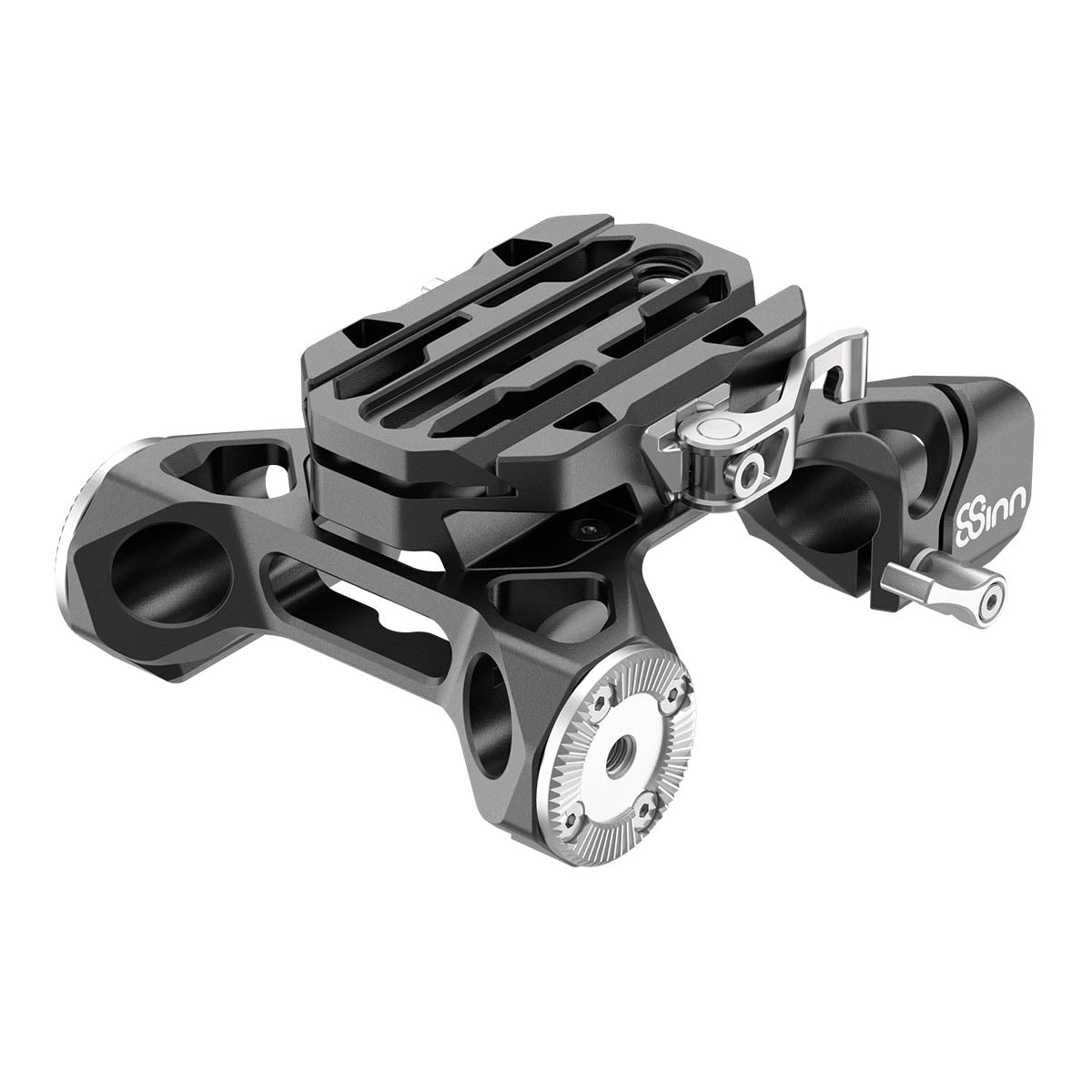

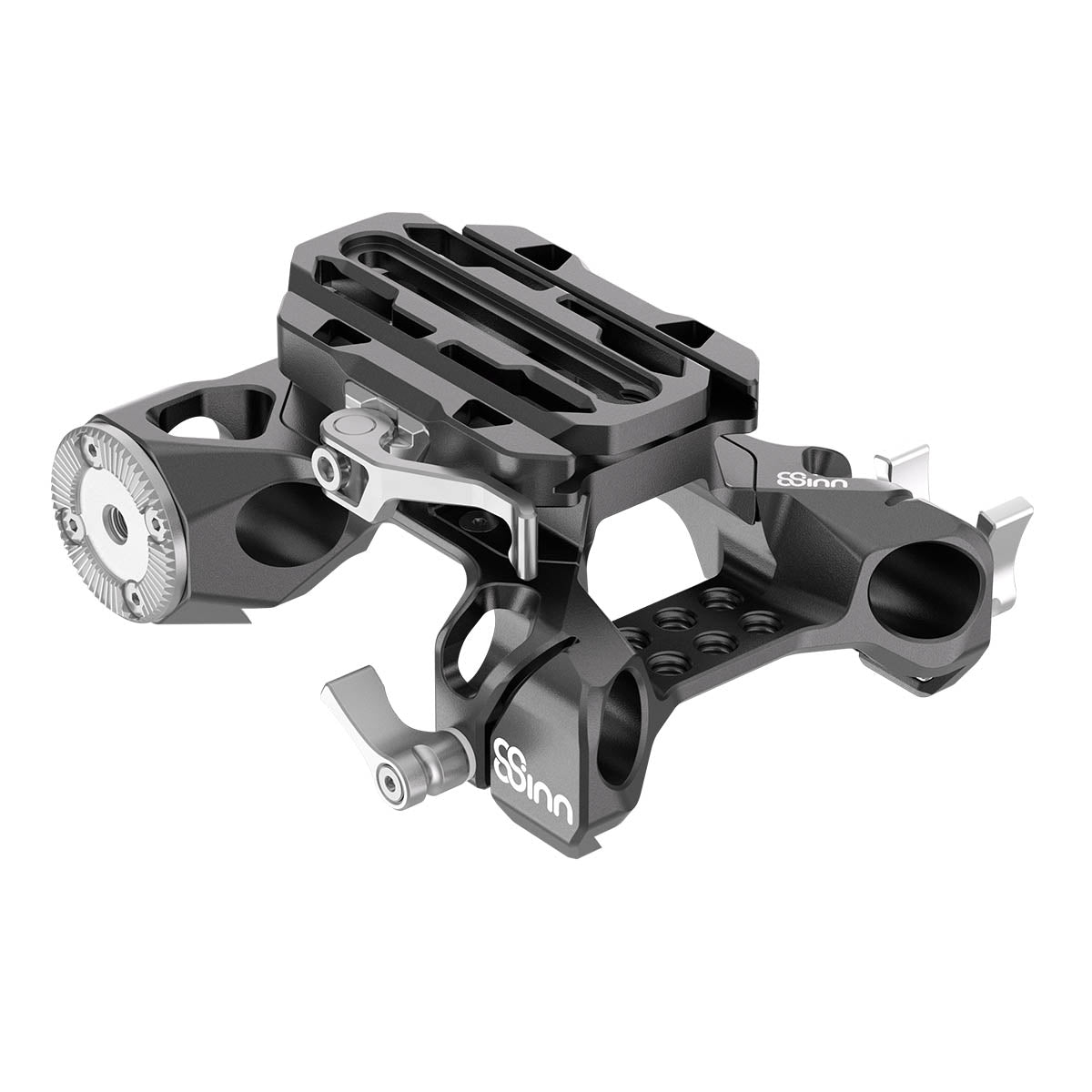

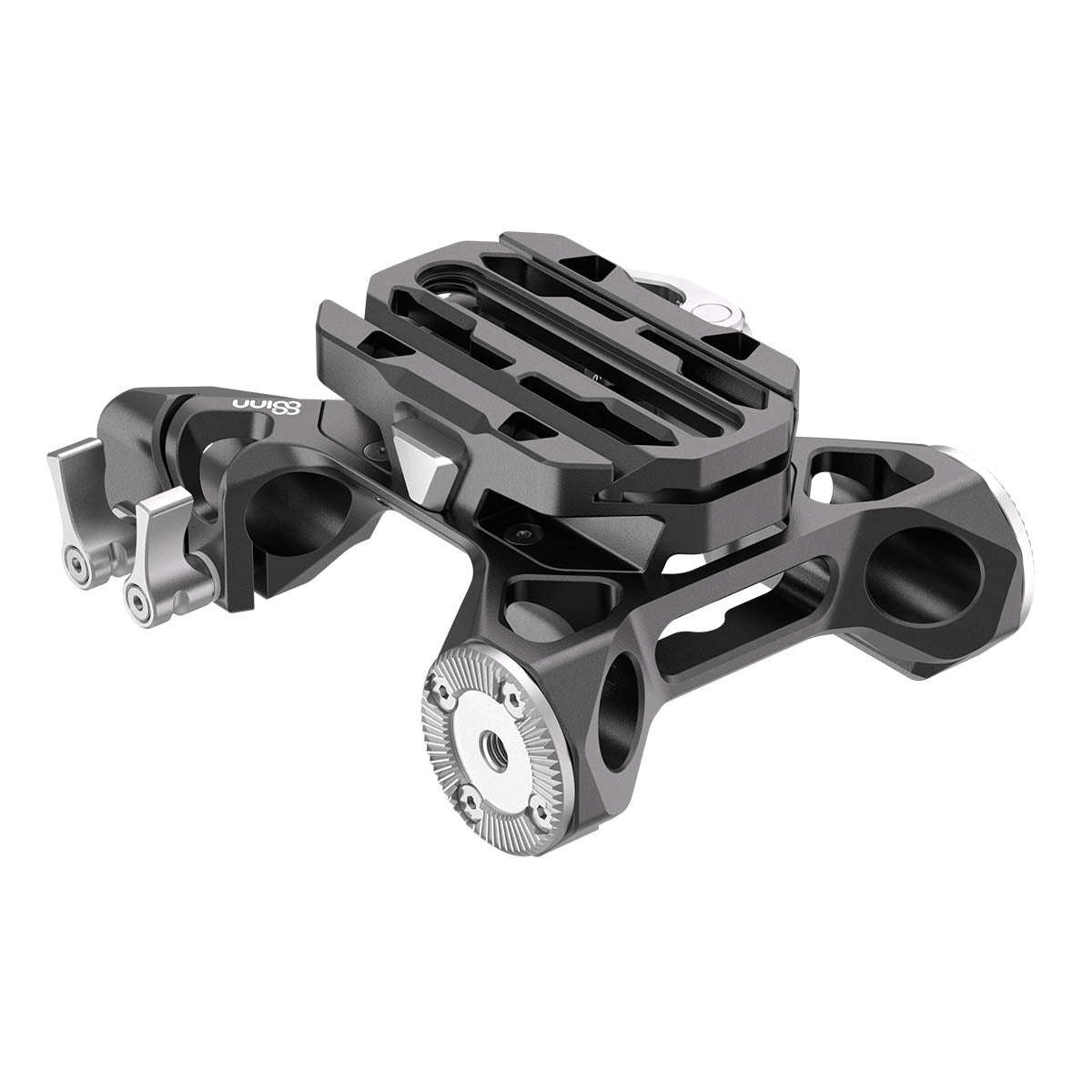

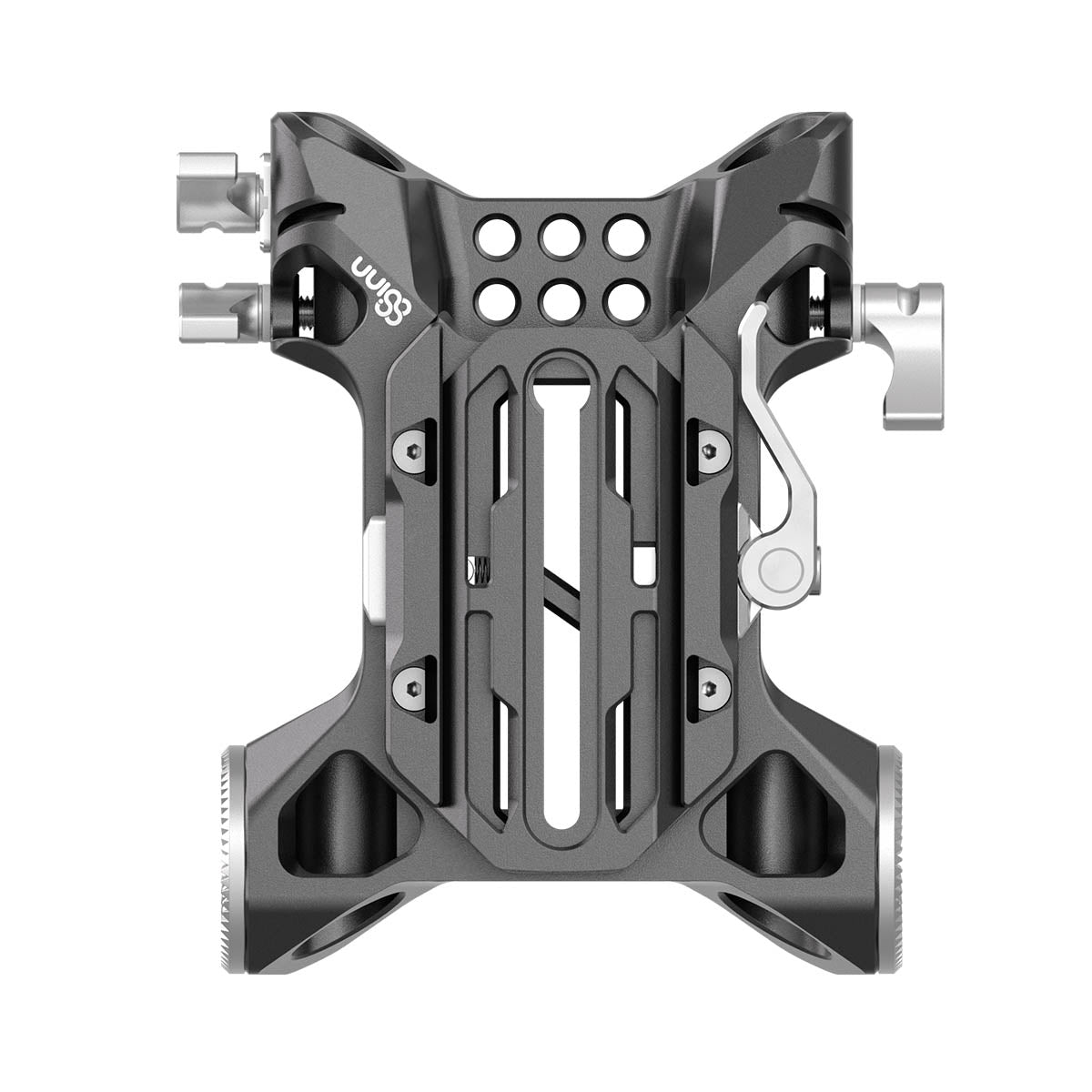

The 8Sinn Arca Swiss Baseplate Kit V2 includes three components: the 15mm Baseplate V2, the Riser Plate II, and the Arca-Swiss Plate. When assembled, they form a solid camera base that enables quick release from the baseplate and seamless transitions to handheld shooting.

The Arca-Swiss Plate is precisely machined on the inside to align with the safety locks on the Riser Plate II. One side uses a release pin, and the other side features a locking lever, securing the Arca plate from both ends when mounted.

The long center slot in the Arca Swiss Plate allows flexible mounting to a camera cage in multiple configurations, depending on the cage’s threaded mounting points, using the included 1/4-inch or 3/8-inch screws.

The 15mm Baseplate V2 includes two 32mm rosettes built to the ARRI standard, along with 15mm rod ports. The rear of the baseplate features six 1/4-inch threaded mounting points, which can be used to attach a Shoulder Pad and convert the system into a shoulder rig. The bottom of the 15mm Baseplate V2 is compatible with standard ARRI dovetail plates.

The 8Sinn Arca Swiss Plate follows the Arca Swiss standard, but its safety locking mechanism is a custom 8Sinn design. To ensure full functionality, the Riser Plate II must be used specifically with the 8Sinn Arca Swiss Plate designed for the Riser Plate II.

The optical center can be reached when used with the combination of the 8Sinn cage, 15MM Baseplate V2, and Riser Plate II + 8Sinn Arca Swiss Plate with the following camera models:

  • 8Sinn Z CAM E2-S6/F6/F8 Cage
  • 8Sinn Z CAM E2 Cage
  • 8Sinn Sony a7III / a7RIII Cage
  • 8Sinn Sony A7RIV Cage
  • 8Sinn Cage for Sony a7SIII
  • 8Sinn BM Pocket Cinema Camera 4K / 6K Cage
  • 8Sinn BM Pocket Cinema Camera 4K / 6K Half Cage
  • 8Sinn Cage for Red® Komodo RED® Raptor - (84.2mm)
  • 8Sinn Cage for Red® Komodo
  • 8Sinn Cage for Panasonic GH6
  • 8Sinn Panasonic S1H Cage
  • 8Sinn Cage for Canon EOS R5C
  • 8Sinn Cage for Leica SL2 / SL2-S
  • Camera Cage for Canon EOS C50

The optical center can also be reached when used without the cage, but with the combination of an 15MM Baseplate V2, Riser Plate II and 8Sinn Arca Swiss Plate for Riser Plate II with the following cameras:

  • RED® Raptor
What's Included
  • 1pc 8Sinn 15mm Baseplate V2
  • 1 pc 8Sinn Riser Plate II
  • 1pc 8Sinn Arca Swiss Plate,
Full Specifications

Dimensions:

  • Length: 120mm
  • Width: 81mm (108mm with the thumbscrews)
  • Height: 49mm
  • Weight: 328g
