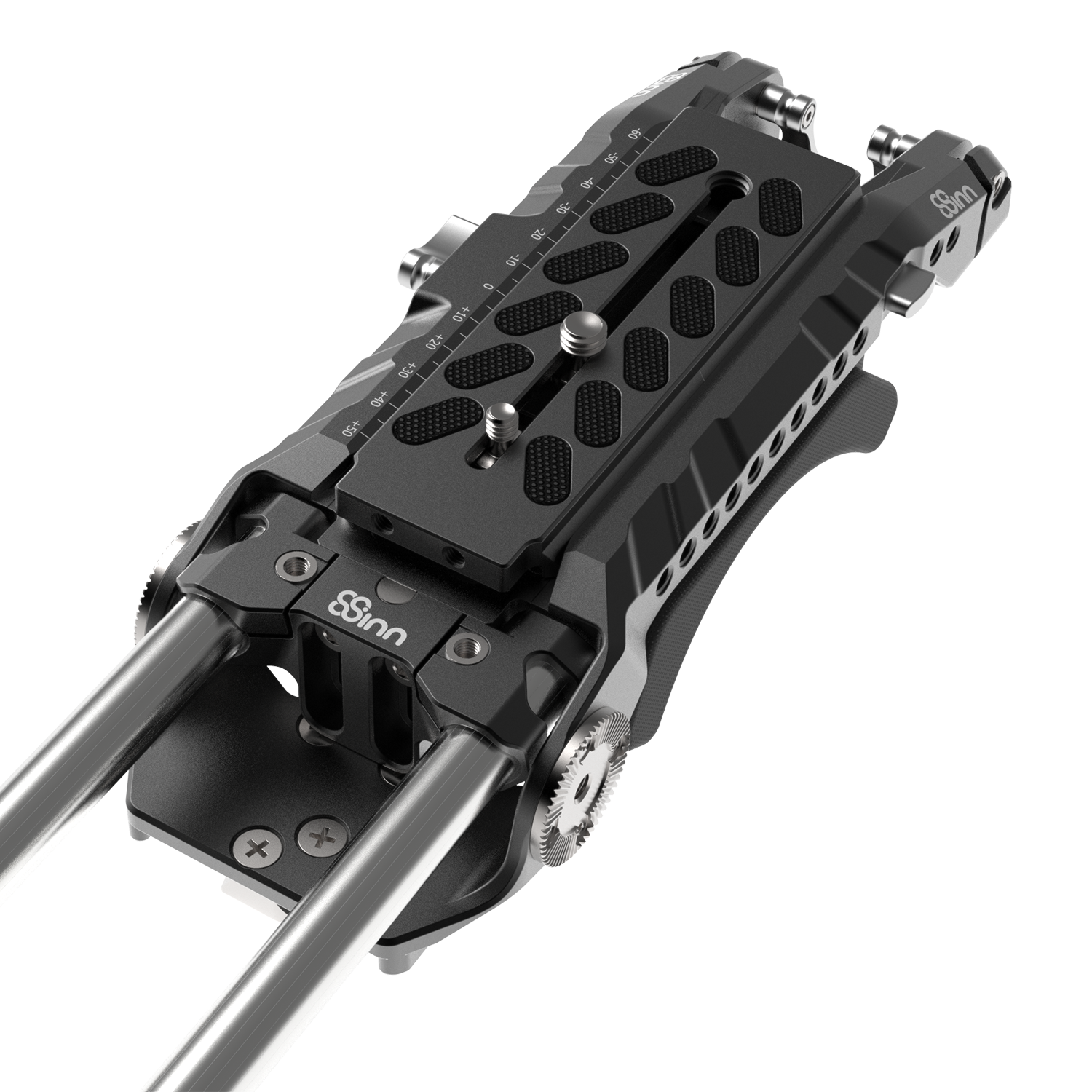

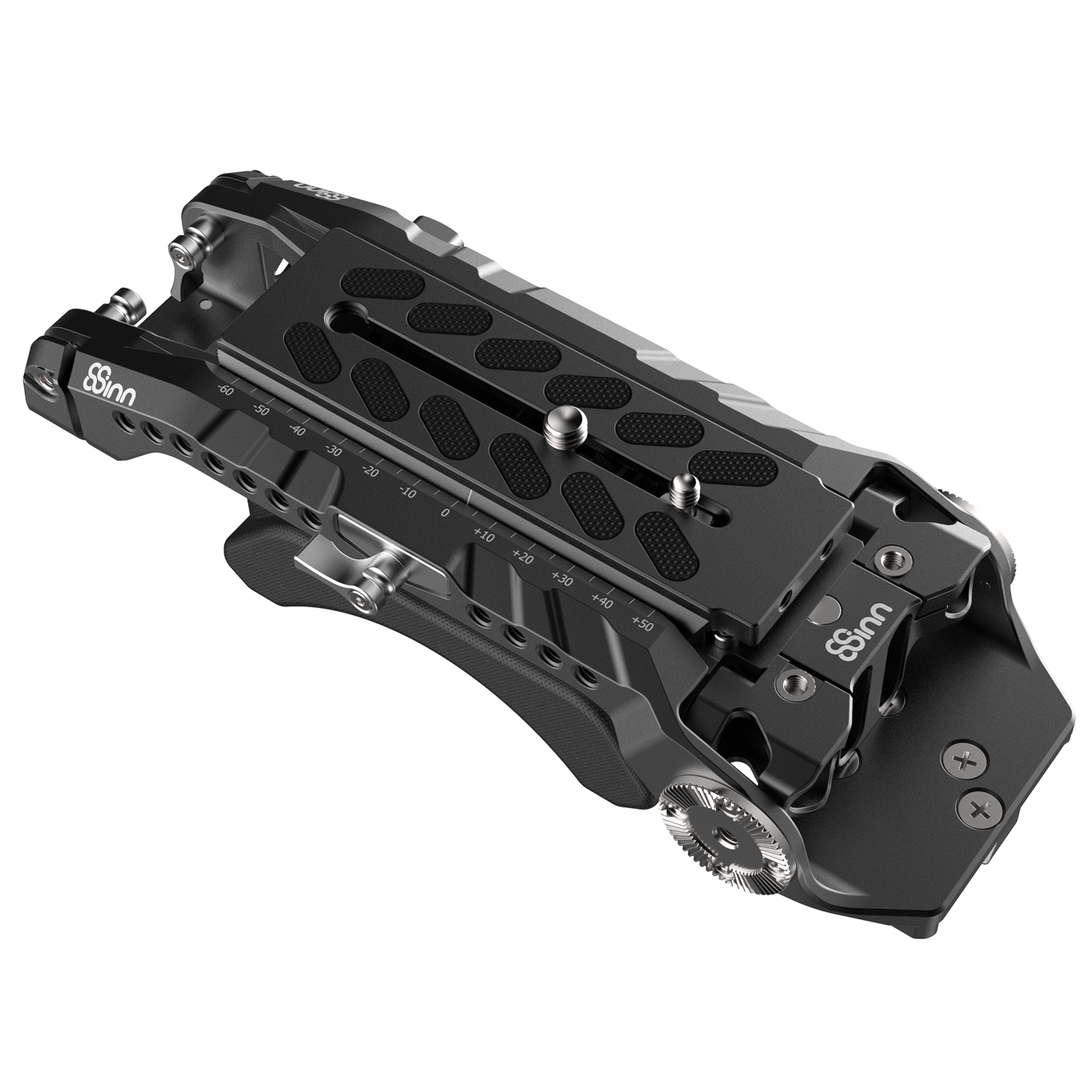

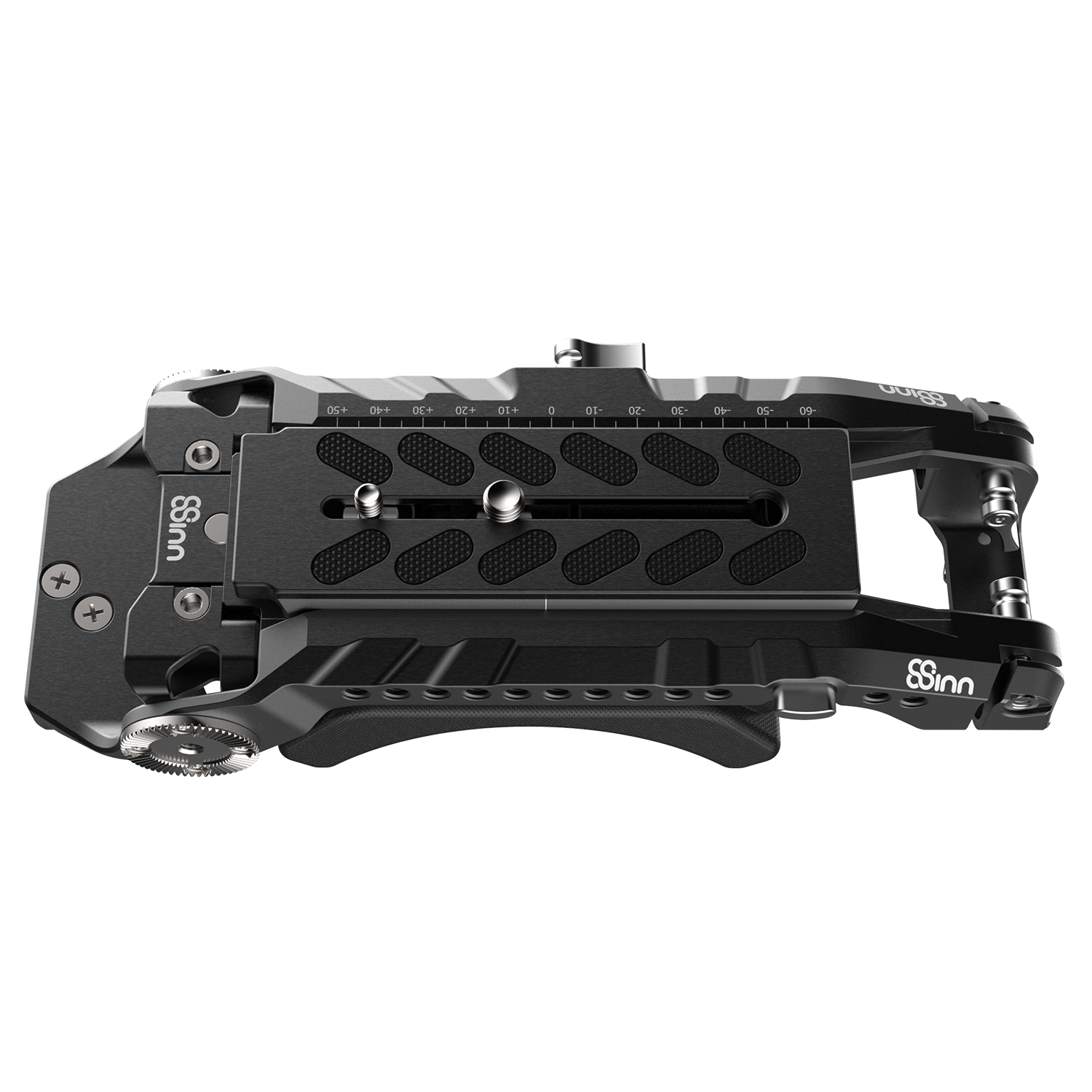

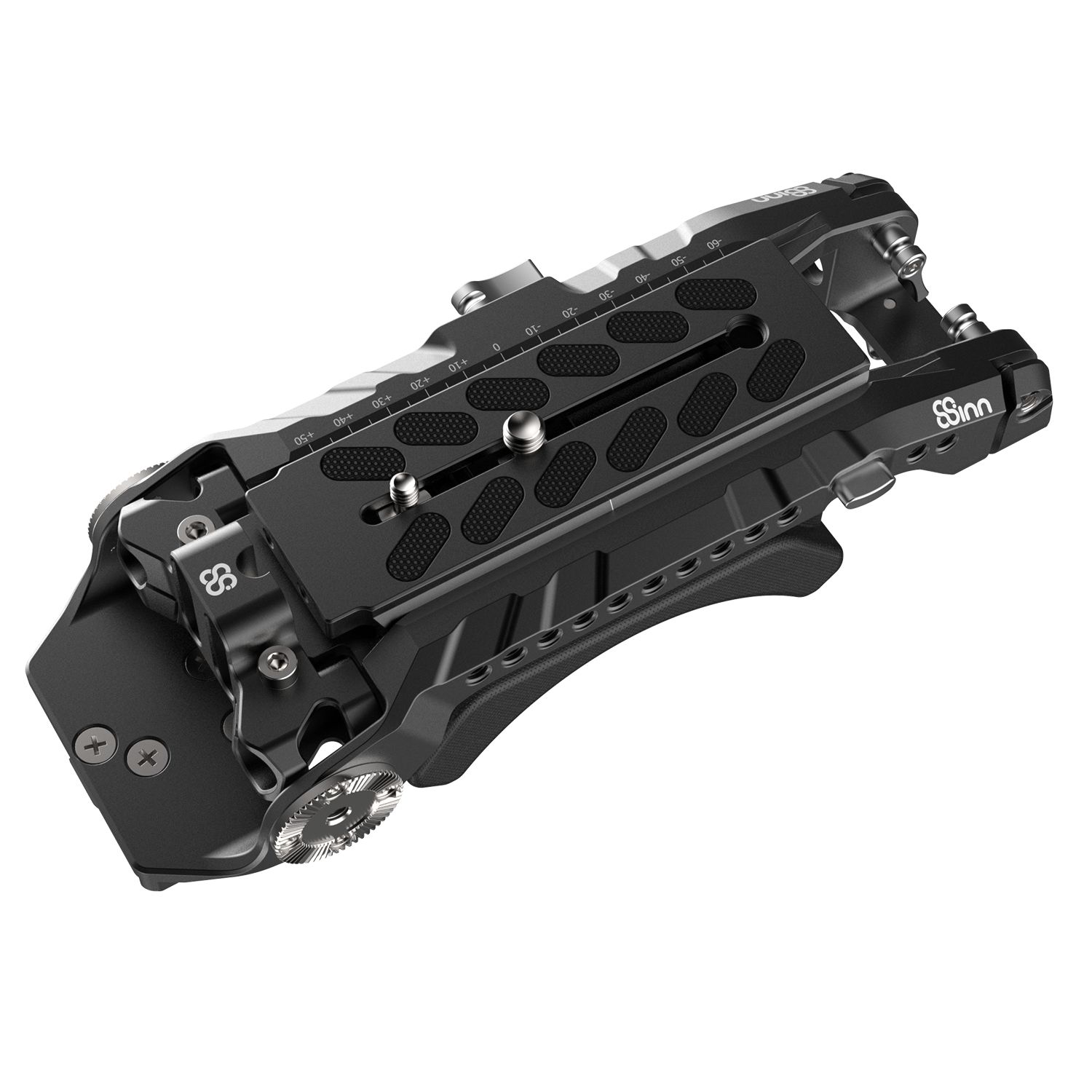

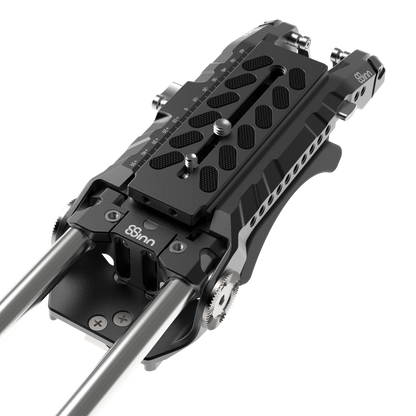

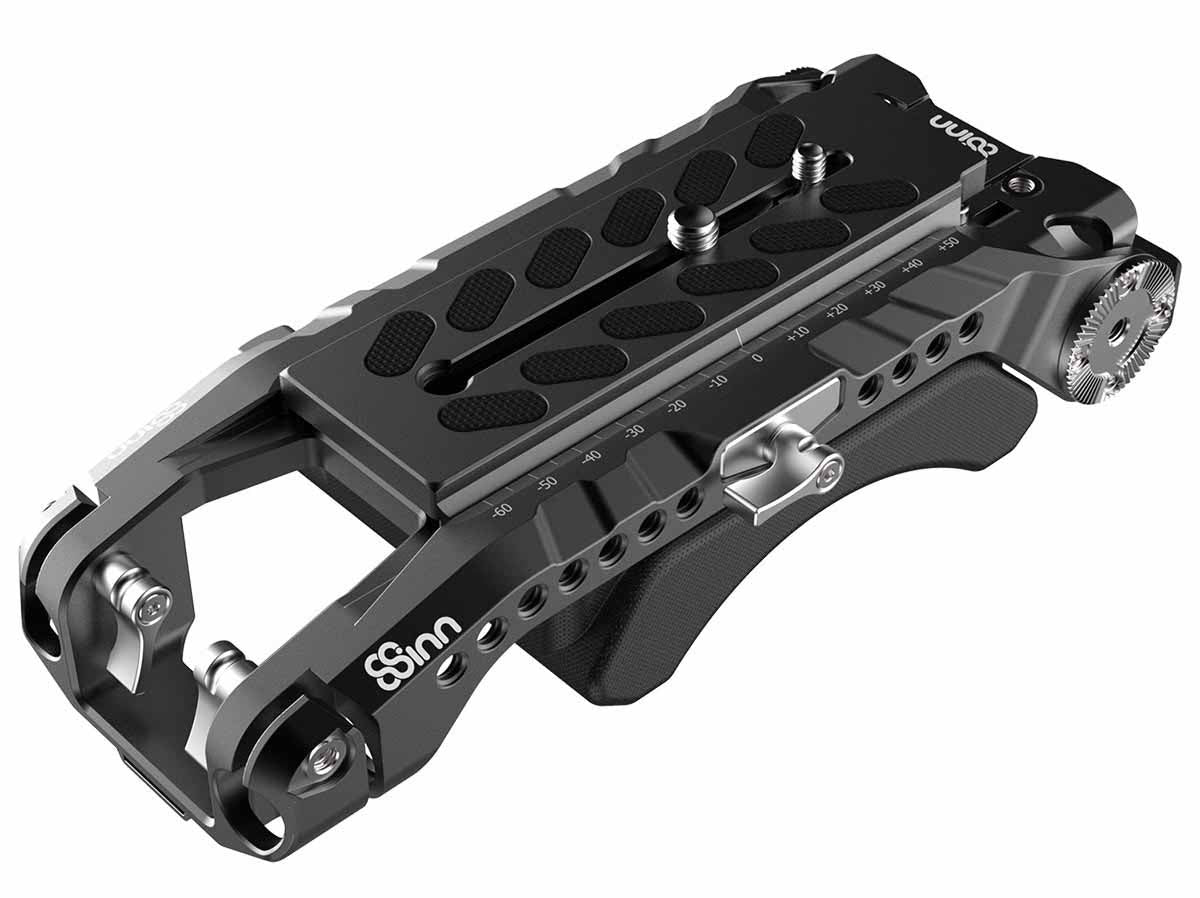

8Sinn VCT Universal Shoulder Base Plate

$399.95 USD
$399.95 USD
Shipping calculated at checkout.
Spend $100.00 USD more for Free Shipping!
0%
Official Warranty5-years manufacturer warranty.
Fast Nationwide ShippingFree shipping over $100.
100% Genuine ProductsWe only products that last a lifetime
Exceptional Customer SupportAlways within reach
$399.95 USD
$399.95 USD
  • Standard Manfrotto 501PLONG quick release plate for easy camera attachment
  • Rubber pads reduce friction and prevent camera slip
  • 1/4" and 3/8" camera mounting screws for universal compatibility
  • Frontal and rear 15mm rod sections with individual tightening knobs
  • VCT-U14 mount compatibility for quick tripod release
  • ARRI Standard 32mm Rosettes for attaching grips and accessories
  • Magnetic, adjustable shoulder pad for balanced comfort during handheld shooting
  • Lightweight aluminum construction with precise build quality
  • Designed for Sony FS7/FS7II/FS5/FS5M2, Blackmagic Ursa Mini, Canon C100/C200, Panasonic EVA1, and more

Dimenions

  • Height: 56mm
  • Width: 95mm
  • Length: 244mm
  • Weight: 756g
  • Material: Precision CNC Aluminum

  • 1 x 8Sinn VCT Universal Shoulder Base Plate
  • *Optionally: 15mm rods

If you have any questions about this product, please let us know by filling out the form below, and we will contact you as soon as possible. You may also send us a message via Live Chat or give us a call at USA: 708-263-4443 or 888-413-3332 (Toll-Free)

8SINN VCT UNIVERSAL SHOULDER BASE PLATE

_

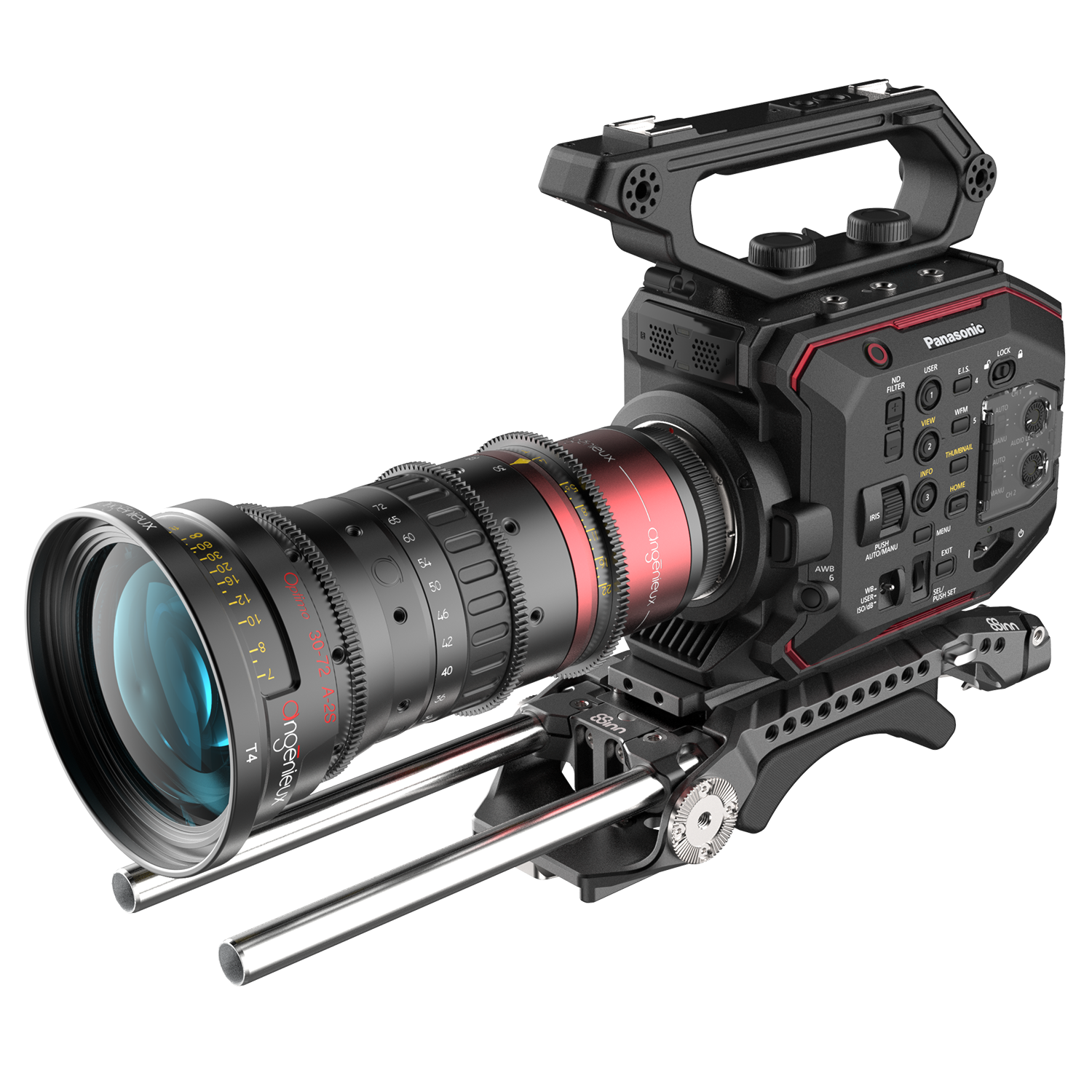

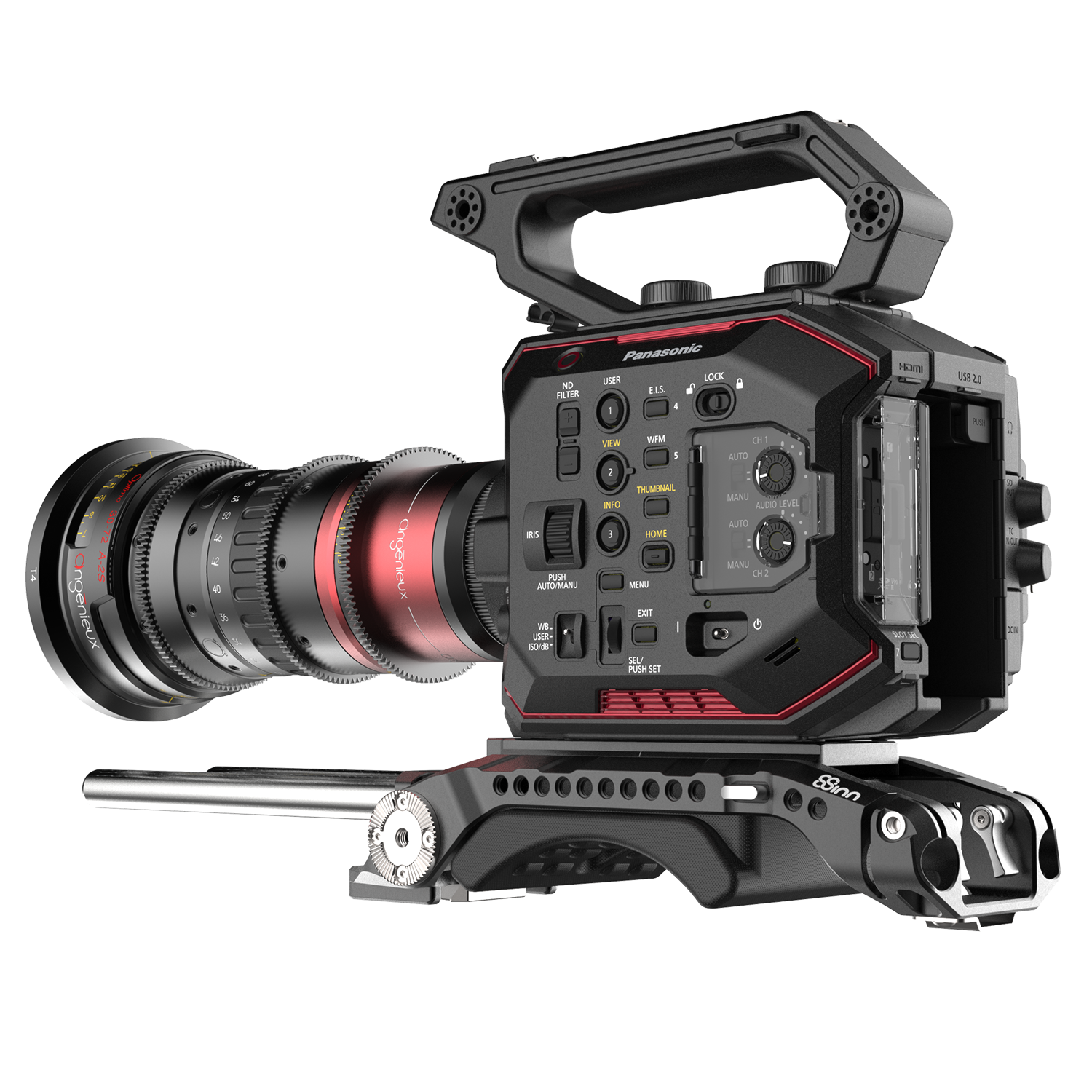

8Sinn filmmakers' equipment moved to the next phase as 8Sinn has introduced its new product. The VCT Universal Shoulder Base Plate has been created to fulfill even the most specific demands. Standardized construction makes 8Sinn`s base plate universal, so it can be used with the following camera models: Sony FS7/FS7II/FS5/FS5M2, Blackmagic Ursa Mini, Canon C100, Canon C200, Panasonic EVA-1, and many others. 8Sinn Shoulder Base Plate serves as an integrated system and sturdy base for your camera rig.

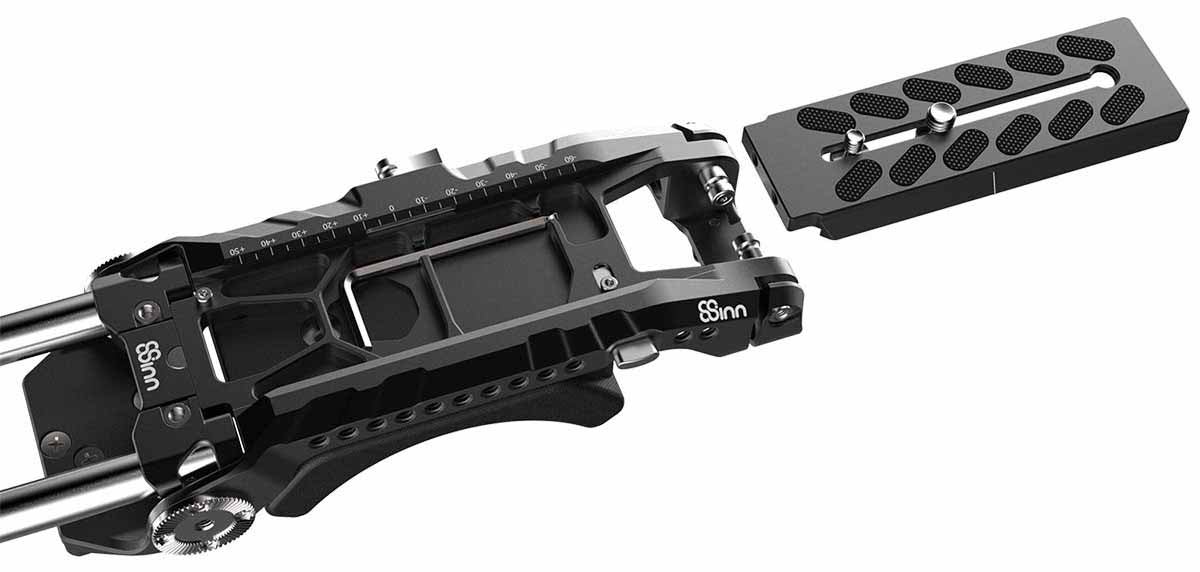

SECURITY SYSTEMS

_

Blocking points located at the main body are built in such a way as to prevent the Manfrotto 501PLONG plate from being lifted off from the VCT Universal Shoulder Base Plate. Blocking button lock and unlock the plate from the VCT Shoulder Plate. The knob function is to keep the plate in a fixed position.

ROD SECTION

_

8Sinn's product has the 15mm rods openings located at the front as well as at the back of its structure. Rods from the back part have their own knob for fixing them in place. Frontal rods section, on the other hand, have their own adjustment system (Frontal rod section can be adjusted vertically).

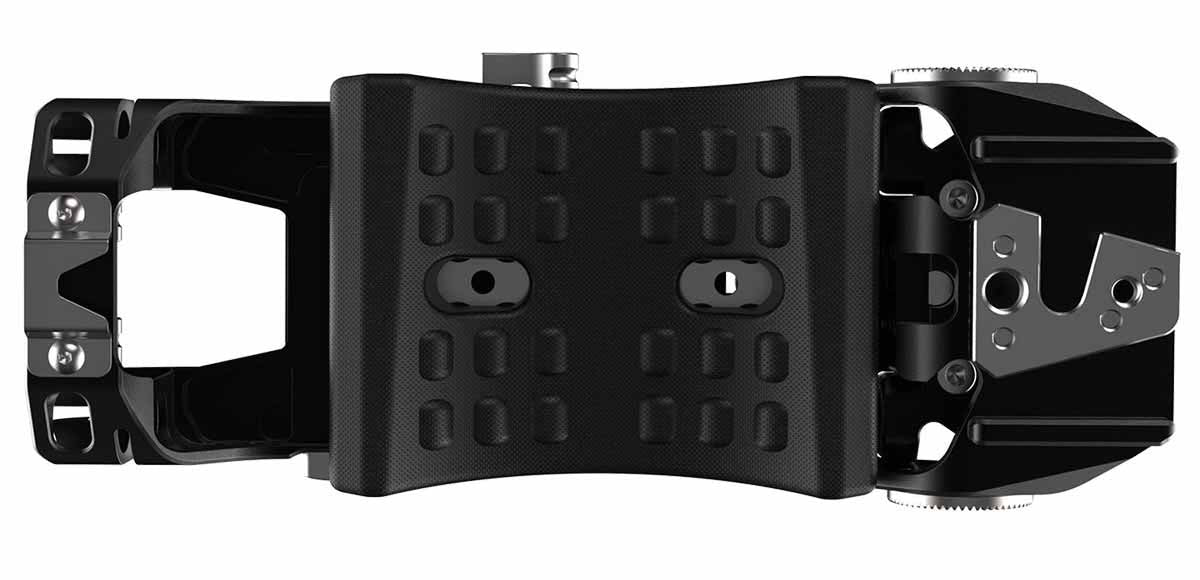

VCT - U14 MOUNT

_

Another standard solution applied on 8Sinn Shoulder Plate is the VCT-U14 Mount, compatible with VCT-U14 tripod adapter plates. This solution enables the possibility of fast attaching and detaching the whole set from the tripod. It becomes handy when frequent shoulder pad position change is assumed - switching of the shoulder support from tripod and then use it while hand shooting.

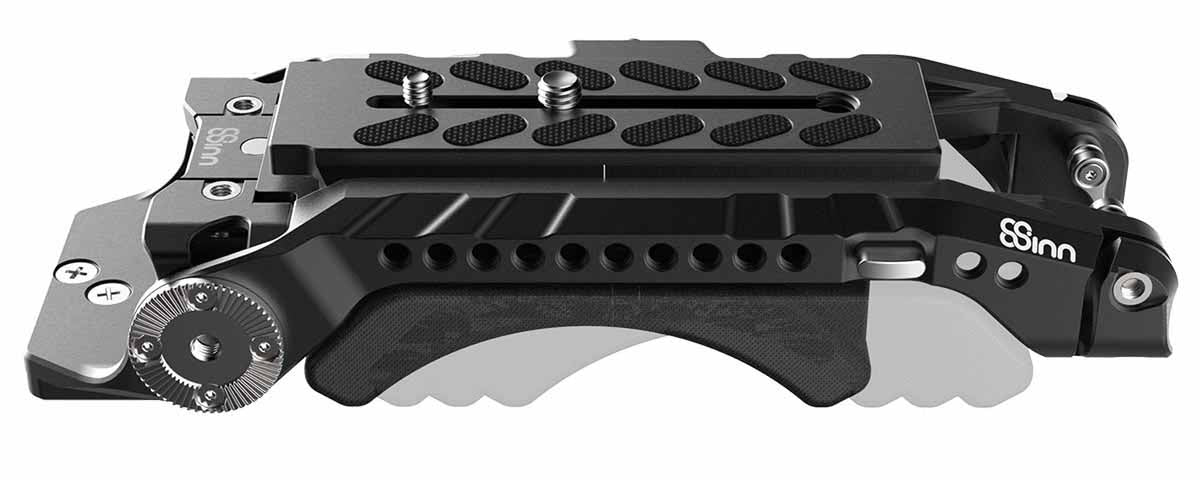

SHOULDER PAD

_

The comfortable, contoured and detachable pad has been created to facilitate the work with 8Sinn VCT Shoulder Plate. Its role is to eliminate the discomfort of the camera weight on your shoulder during shooting. The pad is attached to the VCT Universal Shoulder Plate by magnets and it has four-level regulation possibility - this area contributes to the whole set balance.

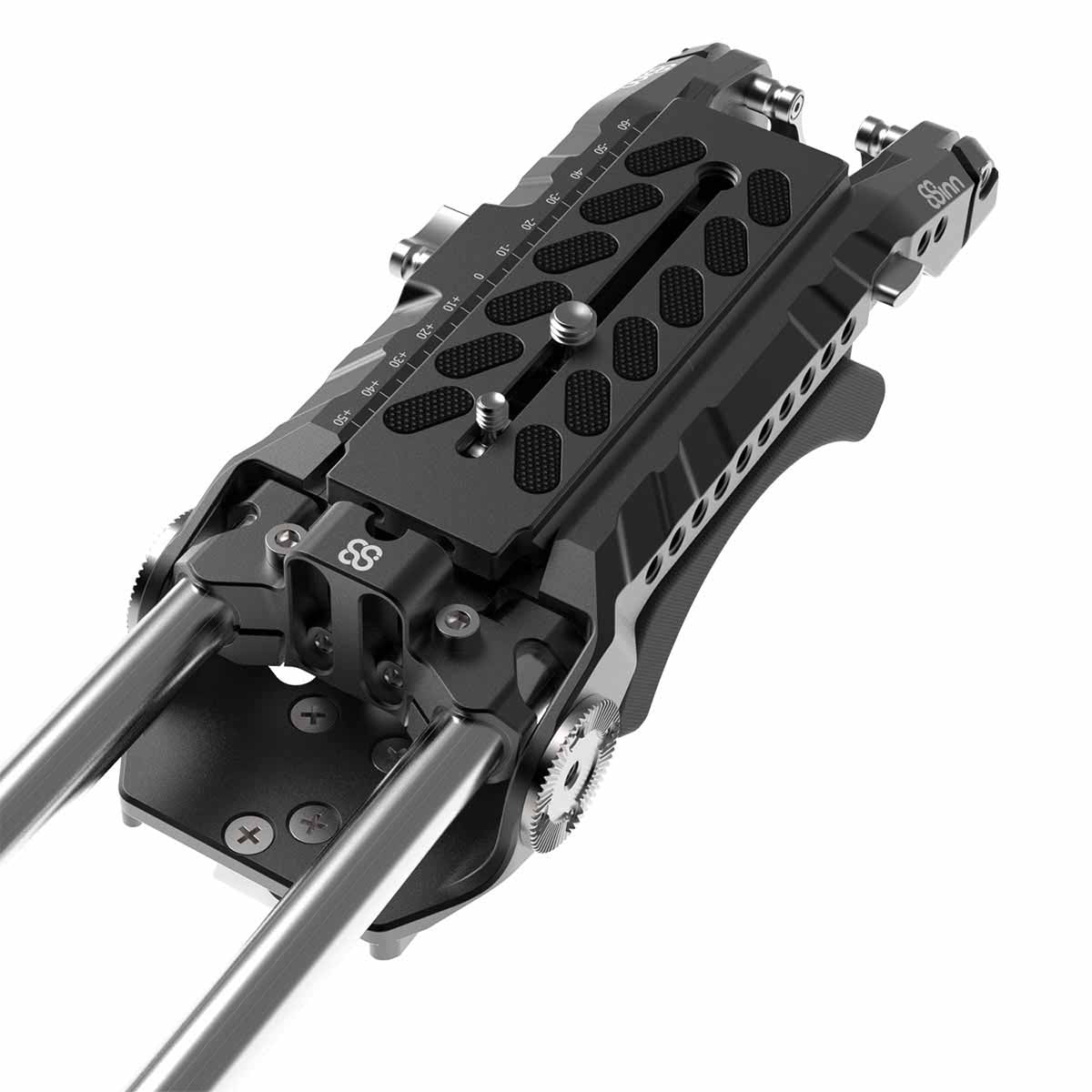

FRONTAL ROD SECTION

_

The substantial part of the VCT Shoulder Base Plate is the 15mm rod mount section. The segment has three levels of height adjustment which is convenient for different types of lenses. Additionally, there is an innovative assembling method, with the possibility of upside-down mounting, which increase the segment height range. - vertical regulation range of rods is 32,5mm (from highest to lowest position), - lowest possible rods position is -35mm when measured from the upper surface of the plate, - highest possible rods position is 2,5mm when measured from the upper surface of the plate.

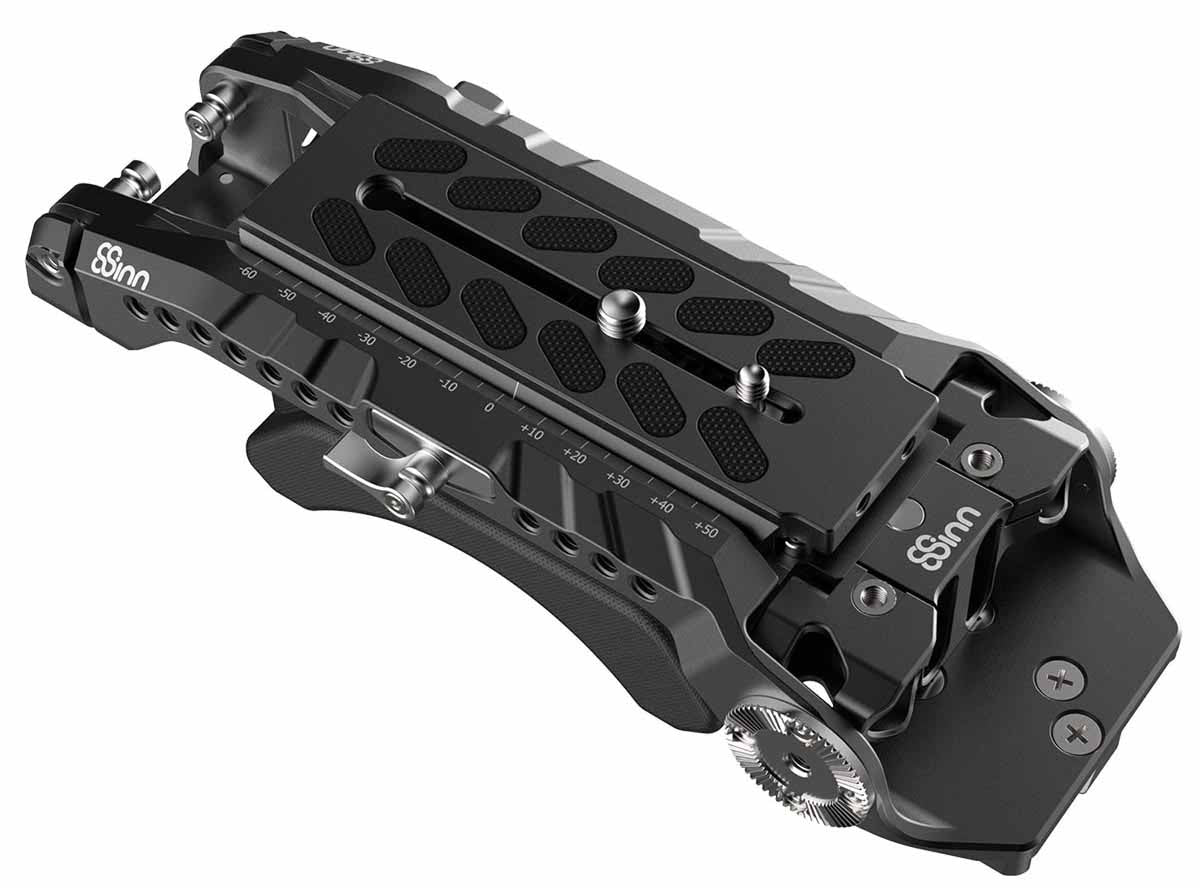

MOUNTING POINTS

_

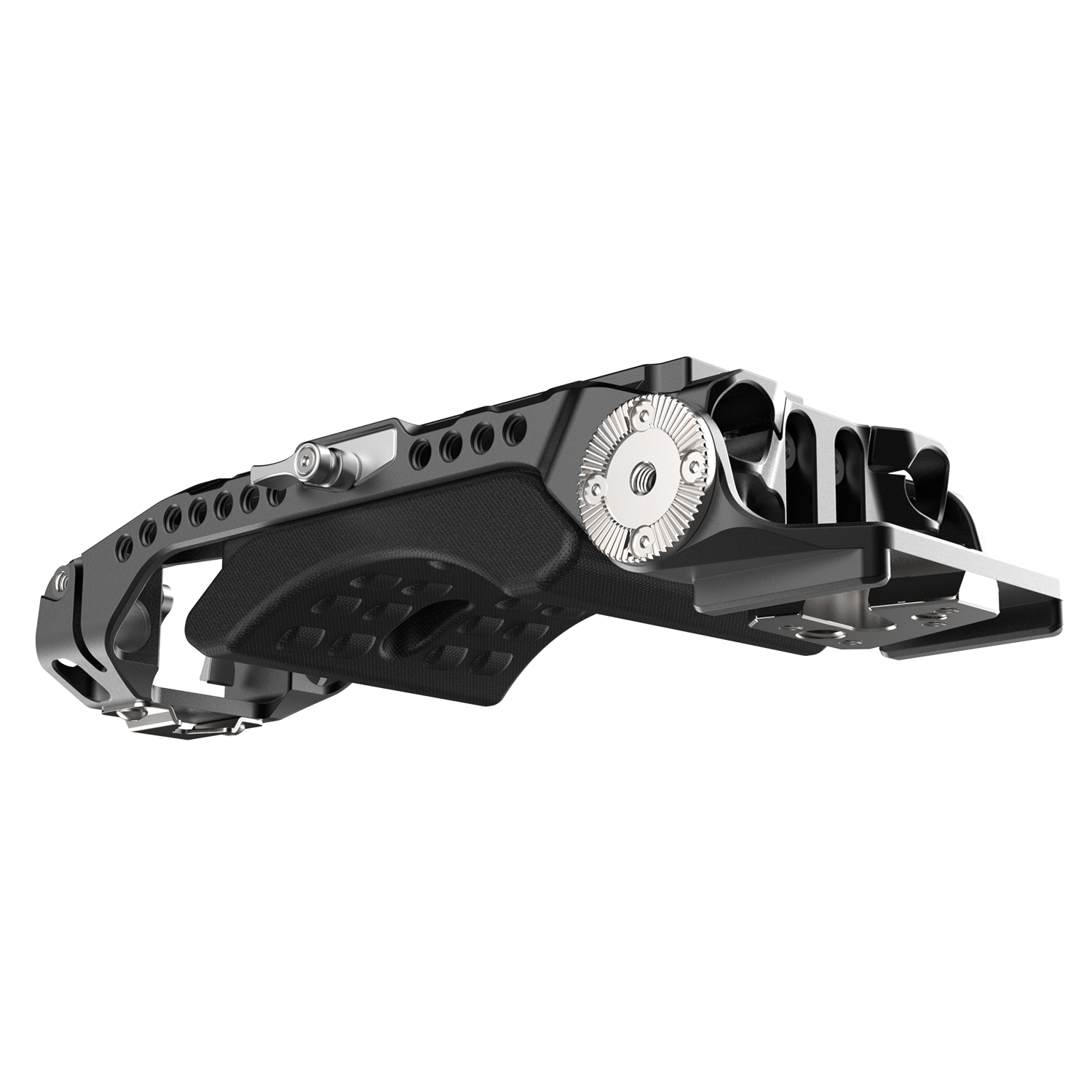

Particular elements of 8Sinn VCT Universal Shoulder Base Plate do not disturb the operator during shooting. The plate has two ARRI Standard 32mm Rosettes suitable for all accessories in the same standard.

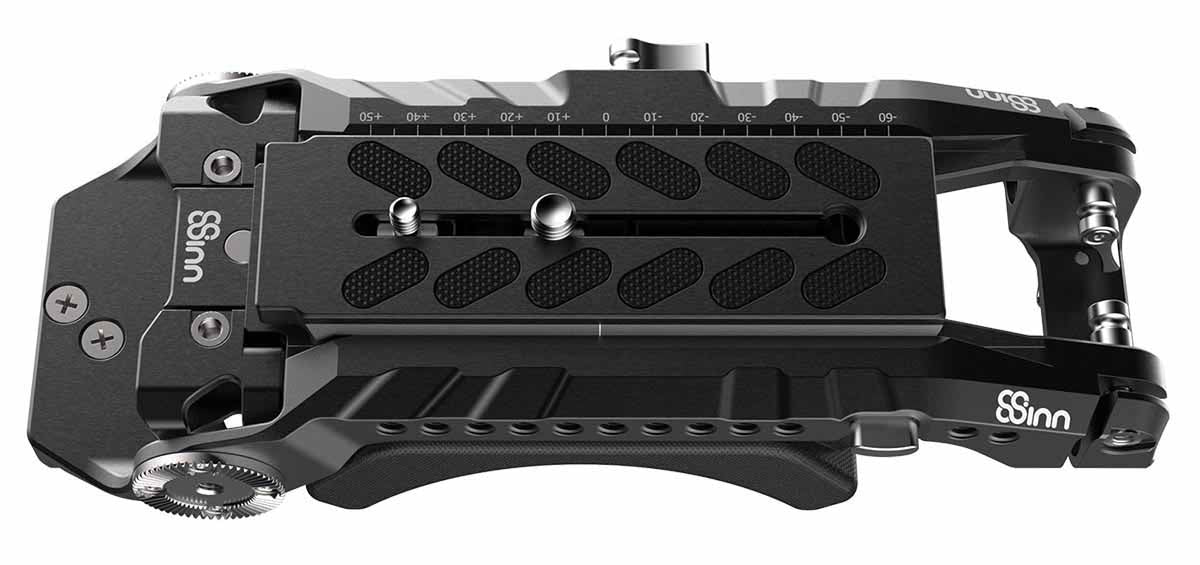

MANFROTTO 501PLONG QUICK RELEASE PLATE

_

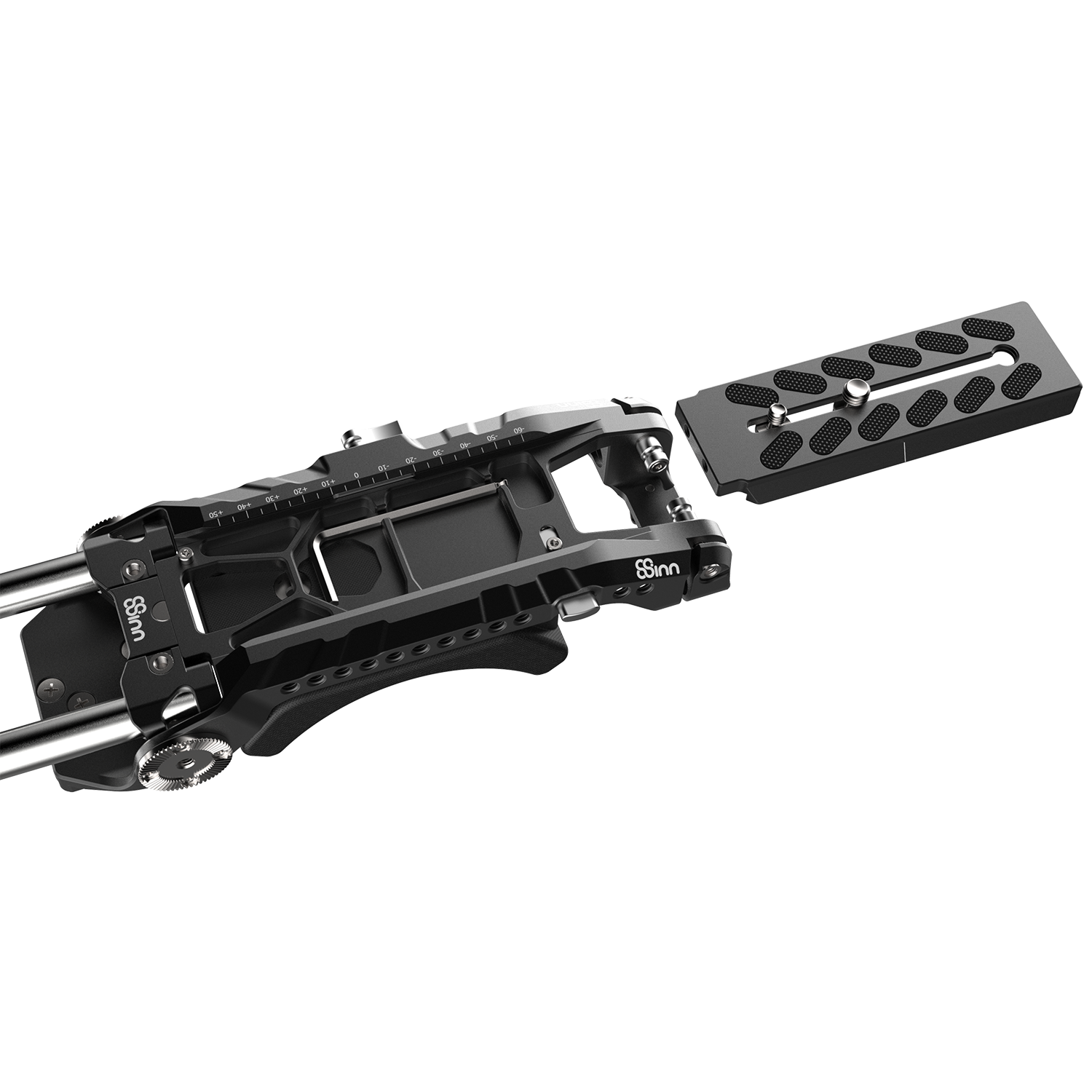

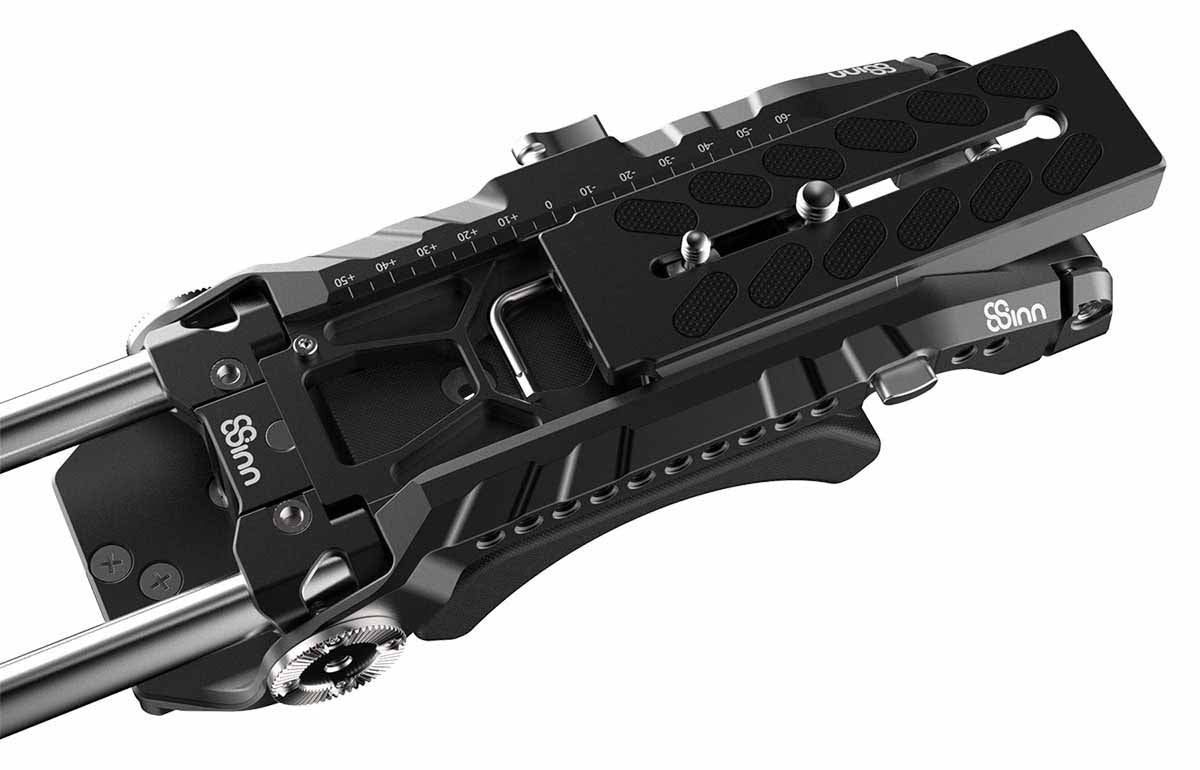

The upper movable plate is a standard Manfrotto 501PLONG quick release video camera plate. This plate serves as a convenient and proven solution for swift attaching and detaching the camera from the VCT Shoulder Base Plate or tripod. Sliding the plate backward and forwards is a way of regulating the camera position. The movable plate has been made from lightweight aluminum with rubber pads on top to prevent unwanted frictions. Additionally, there is the key compartment placed under the plate - the key becomes useful for rods tightening and the rods mount section positioning.
