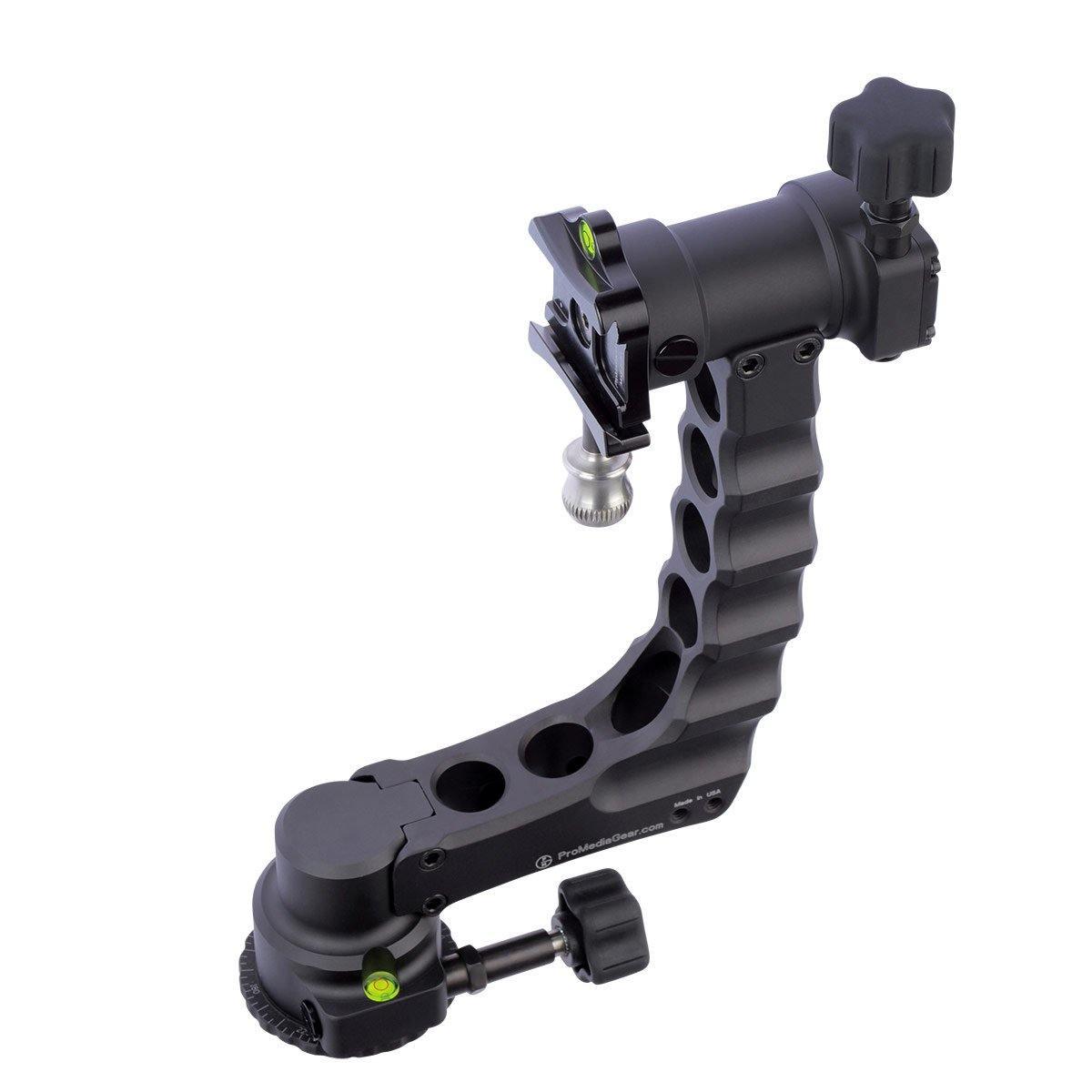

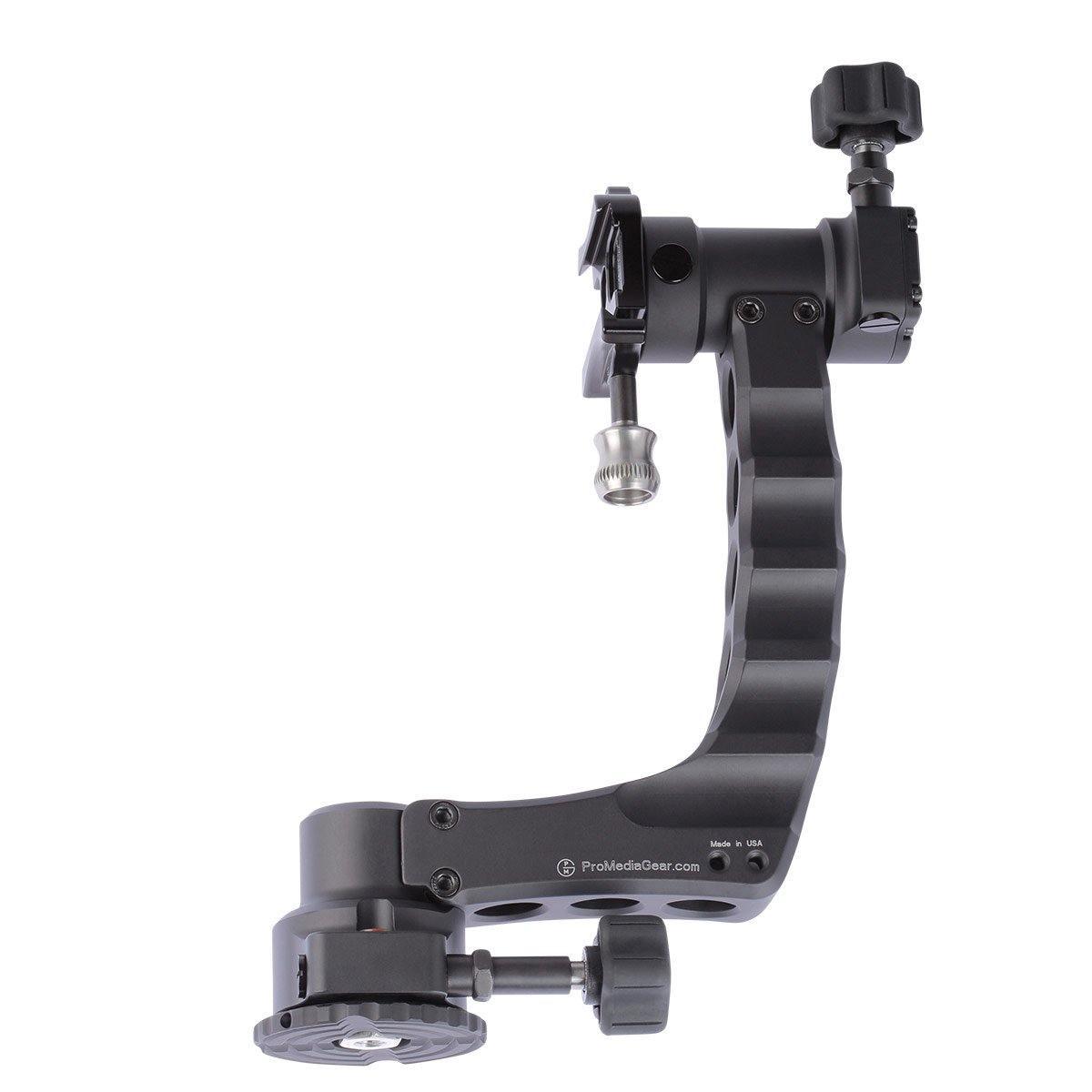

GKC Katana Gimbal Tripod Head Professional Telephoto Lens Support without Cradle

$799.95 USD

Free shipping for orders $100 above (USA)


  • Smooth panning and tight locking mechanism (separate from assembly mounts) adjust the friction without parts coming apart
  • Arca-Swiss type compatible lens mount
  • Hard anodized scratch-resistant finish
  • Sealed Maintenance Free Ball Bearings
  • Oversized knobs
  • Lightweight aircraft quality aluminum
  • 150 lbs load capacity
  • CNC Precision machined parts
  • 5-year warranty
  • Made in the USA

For long, we have been driven to create something revolutionary. The Katana Gimbal is the result of not copying but innovating from the ground up.

It looks, operates, and consists of materials that are not the result of cost-cutting but those that are the finest available. It operates smoothly even with the heaviest and most expensive lenses. Imagine all day shooting with a super-telephoto lens without getting tired.

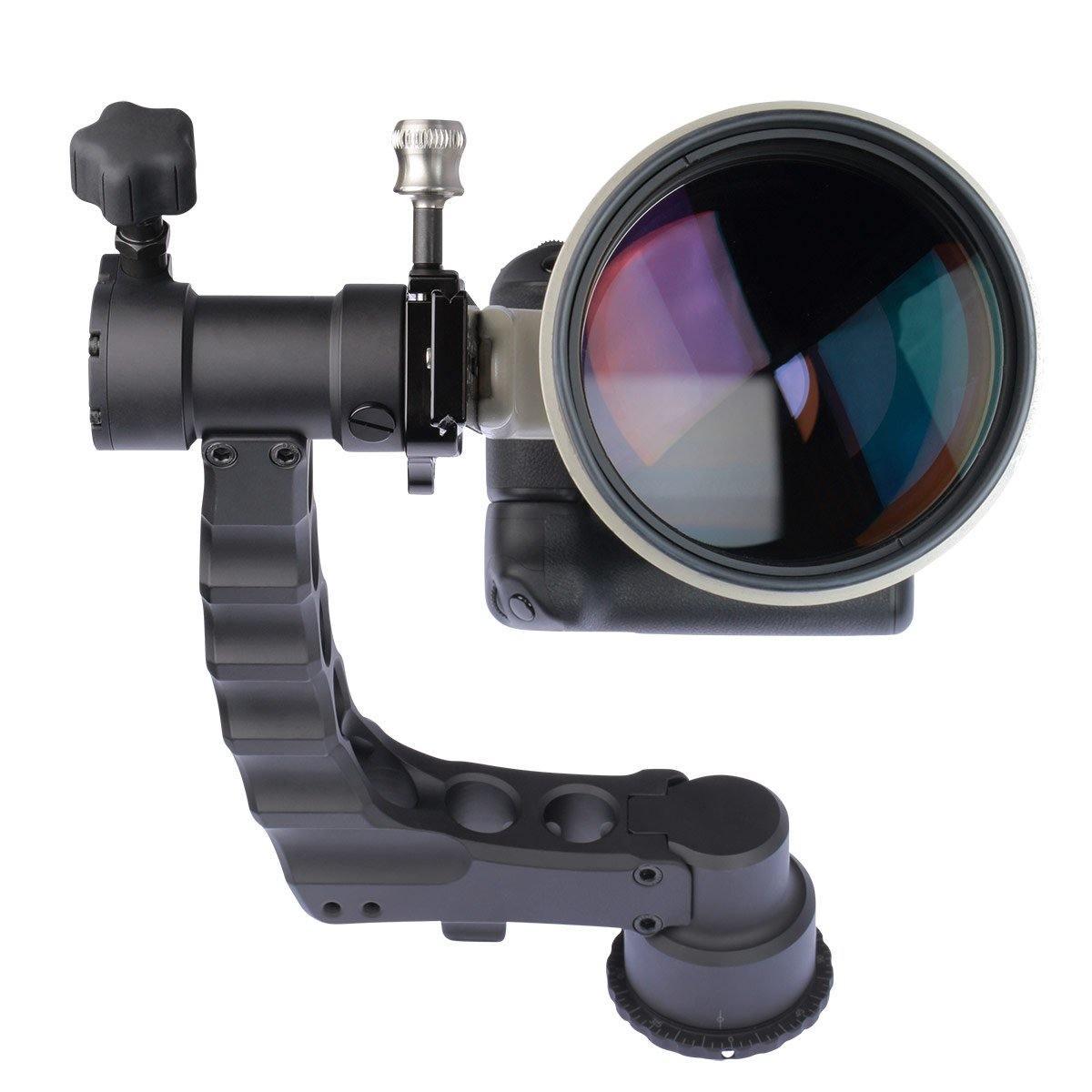

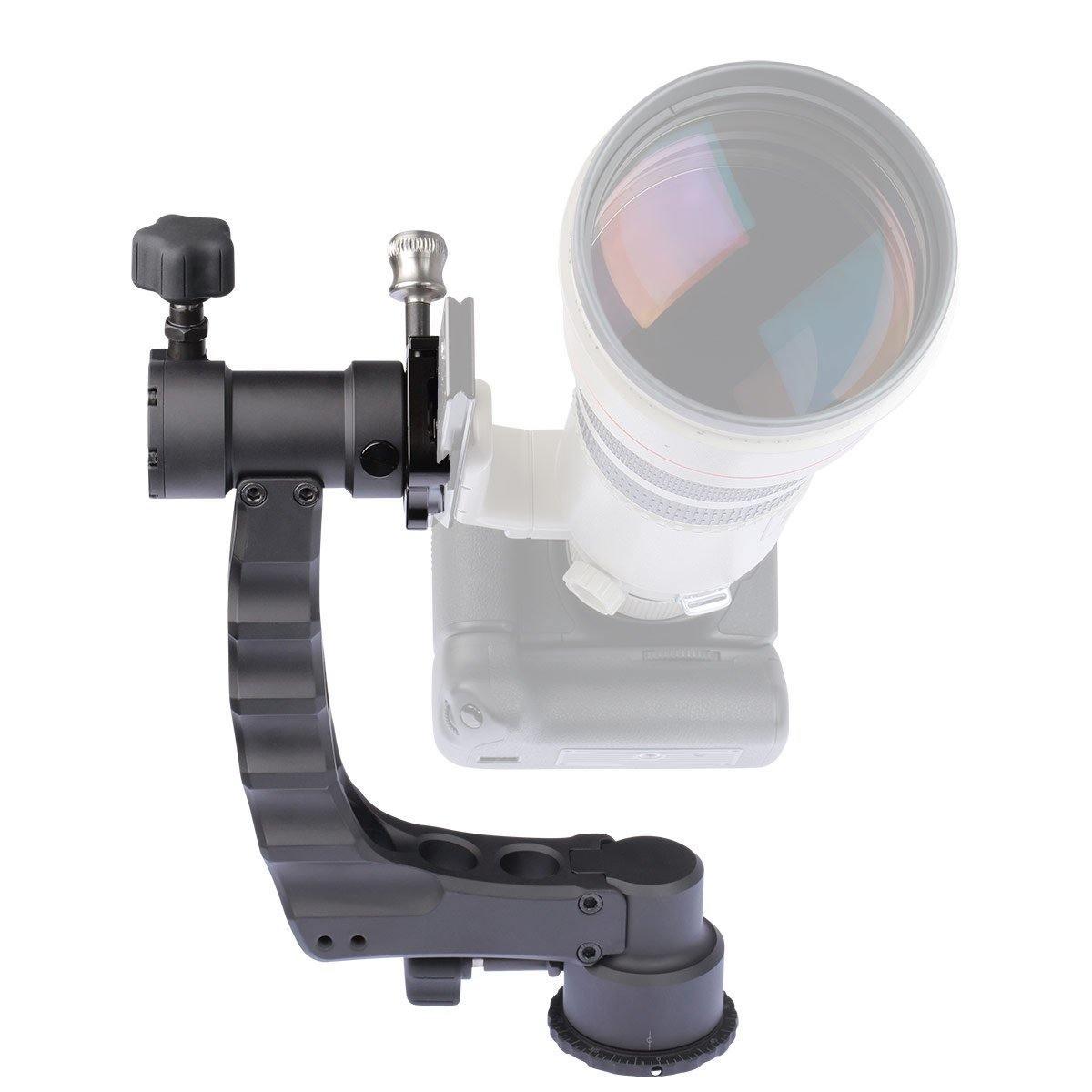

The Katana Gimbal Head provides ultra-smooth movement and stable support for even the longest telephoto lenses. The ProMediaGear Katana is capable of supporting up to 150 lbs of equipment and features an Arca-Type cradle attachment.

Separate locking and adjustment mechanisms allow friction adjustment without instability. Camera and lens positions can be adjusted smoothly with one hand and a balanced position maintained without tightening.

The Katana is made of hard-anodized, scratch-resistant 6061 aluminum alloy and CNC precision machined parts in the USA. Maintenance-free, designed with weather-sealed ball bearings, enables the head’s smooth movements. The Katana also features oversized knobs for ease of operation.

What's Included
  •  GK Katana Gimbal Head with Arca Type Clamp without Cradle
  • 5-year warranty
  • Made in the U.S.A.
Full Specifications
  • Length: 9.5 inches
  • Width: 2.25 inches
  • Height: 13 inches
  • Weight: 4.5 pounds
  • Load Capacity: 150 lbs (68kg)
  • Mount Thread: 3/8-16
  • Mounting Base: 2.98 inches

Customer Reviews

Based on 1 review
Daniel Glueck

5 stars, no question. I can't imaging a camera/lens this can't handle with aplomb. Build quality in all respects is superb and the included cover and ARCA plate are appreciated. It's a little heavy, but to my mind stiffness is ALL. I won't be schlepping it deep into the woods. I purchased this for photographing the eclipse and later birds and whatever else I fancy. My Wimberley has some very light stiction when moving slight a amount trying to follow the sun. In this regard the Katana is better due to the roller bearings, but when tightening the pivots the camera head moves slightly, so zeroing in on a position and locking it down is a bit of an iterative process. That being said, I don't think the head needs needs to be locked down very tightly after experimenting for an afternoon. I'm using a Canon 7DMkII with 100-400 L IS II zoom and either a 1.4 or 2.0 extender. Also remote trigger and Thousand Oaks solar filter. I'm experimenting with the tradeoff between autofocus/less mag and manual focus/more mag. I might just lock it into a position with a lesser mag and take photos as the sun marches across the sky. I bracket the exposure and use silent continuous shooting.
